GIS Outlet Bushing

Product Item: QXFG(P)RGW
Rated Voltage: 40.5kV - 550kV
Rated Current: 1000A - 8000A
Dry-type Condenser GIS Bushing
RIP GIS Outlet Bushing
RIF GIS Outlet Bushing

Mobile: +86 182 0635 8008

Email：info@qxelectric.com

WhatsApp：+86 133 9635 8192



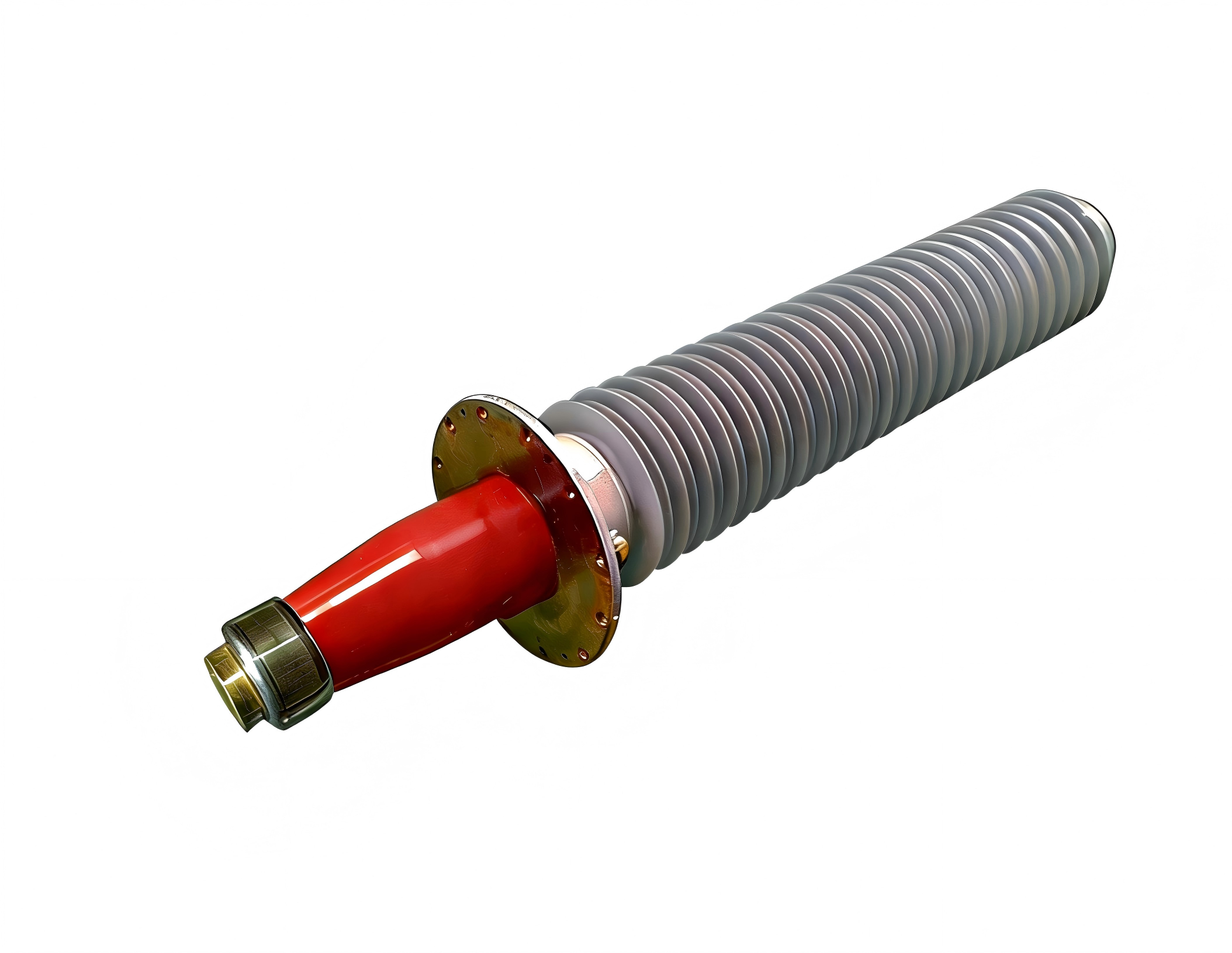

Dry-type GIS outlet bushing
RIF/RIS GIS outlet bushing

WhatsApp

Email

Main Technical Index

Main Technical Index
System Nominal Voltage (kV)		66	110	220	330	500
Rated Voltage (Highest Voltage for Equipment) (kV)		72.5	126	252	363	550
Power Frequency Withstand Voltage (kV/min)	Dry	140	230	460	595	710
	Wet	140	230	460	535	-
Lightning Impulse Withstand Voltage	Full Wave	325	550	1050	1175	1550
	Chopped Wave	357.5	605	1155	1292.5	1705
Switching Impulse Withstand Voltage (kV)		-	-	850	950	1175
Dielectric Dissipation Factor	Maximum	The value at 1.05Um/√3 shall not exceed 0.4%.
	Increment	The increment between 1.05Um/√3 and Um shall not exceed 0.1%.
Test Terminal Insulation Level (kV/min)		3
Partial Discharge Level (pC)	Um	≤10
	1.05Um/√3	≤5
Pressure Tightness Test		0.65MPa/24h, no leakage.
Short-Time Withstand Current		Magnitude: 25 times the rated current of the bushing, maximum 100kA. Duration: 2s.
Rated Frequency (Hz)		50
Outdoor Shed		Outdoor sheds with alternating long and short profiles for anti-pollution. The nominal creepage distance complies with the requirements of GB/T 26218.

Cantilever Withstand Load (N)
Rated Voltage (kV)	Rated Current (A)
Rated Voltage (kV)	≤800	1000-1600	2000-2500	≥3150
72.5	2000N	2000N	3150N	4000N
126	3150N	3150N	4000N	4000N
252	4000N	4000N	5000N	5000N
363	4000N	4000N	5000N	5000N
550	4000N	4000N	5000N	5000N

This bushing provides a direct, reliable connection between overhead lines (or other outdoor equipment) and SF6-insulated metal-enclosed switchgear (GIS).

Product Advantages

True Solid Dielectric Solution: Our RIF or RIP bushings eliminate SF6 gas entirely from the bushing body, solving the endemic problems of gas leakage, pressure monitoring, and costly maintenance associated with conventional gas-filled GIS outlet bushings.

All-Angle Installation & Low-Temperature Operation: The solid design allows installation at any angle and remains fully functional in extremely low temperatures (below -40°C), where SF6 gas can liquefy and cause insulation failure.

Enhanced Safety: Removes the risk of explosion due to loss of gas pressure or internal flashover.

Custom Design: Adaptable to various GIS interfaces and environmental conditions.

Suitable Service Conditions for Bushings

Altitude: Applicable for installations at or below 2000m above sea level.
For altitudes exceeding 2000m, the technical specifications shall be subject to agreement between the supplier and the purchaser.

Ambient Temperature: Suitable for a range of -50 °C to +50 °C.
For environments outside this range, the technical specifications shall be subject to agreement between the supplier and the purchaser.

Installation Angle: Can be installed at any angle.

Pollution Class: Suitable for use in heavily polluted areas with a classification of Class III or higher.

Ordering Information

When placing an order, please specify the following parameters:

1. Electrical Parameters:

Rated voltage, rated current, rated frequency, external insulation creepage distance, internal insulation clearance, oil-end length, draw-lead length (critical), CT mounting position length (critical).

2. Environmental Parameters:

Ambient temperature, altitude, pollution class.

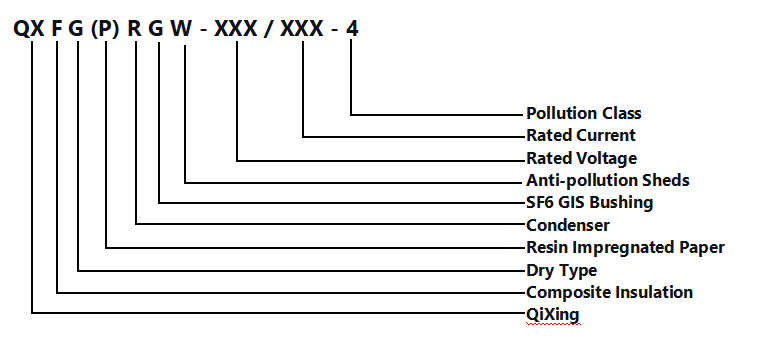

3. Model Designation:

The letter "F" in the model number (e.g., for Transformer Bushing, GIS Bushing, or Wall Bushing) indicates the silicone rubber composite sheds. The absence of "F" indicates the porcelain sheds.

Note: The dimensions of the bushing flange and terminals can be custom-designed according to the transformer manufacturer's requirements. We also supply direct replacement bushings for existing installations.
